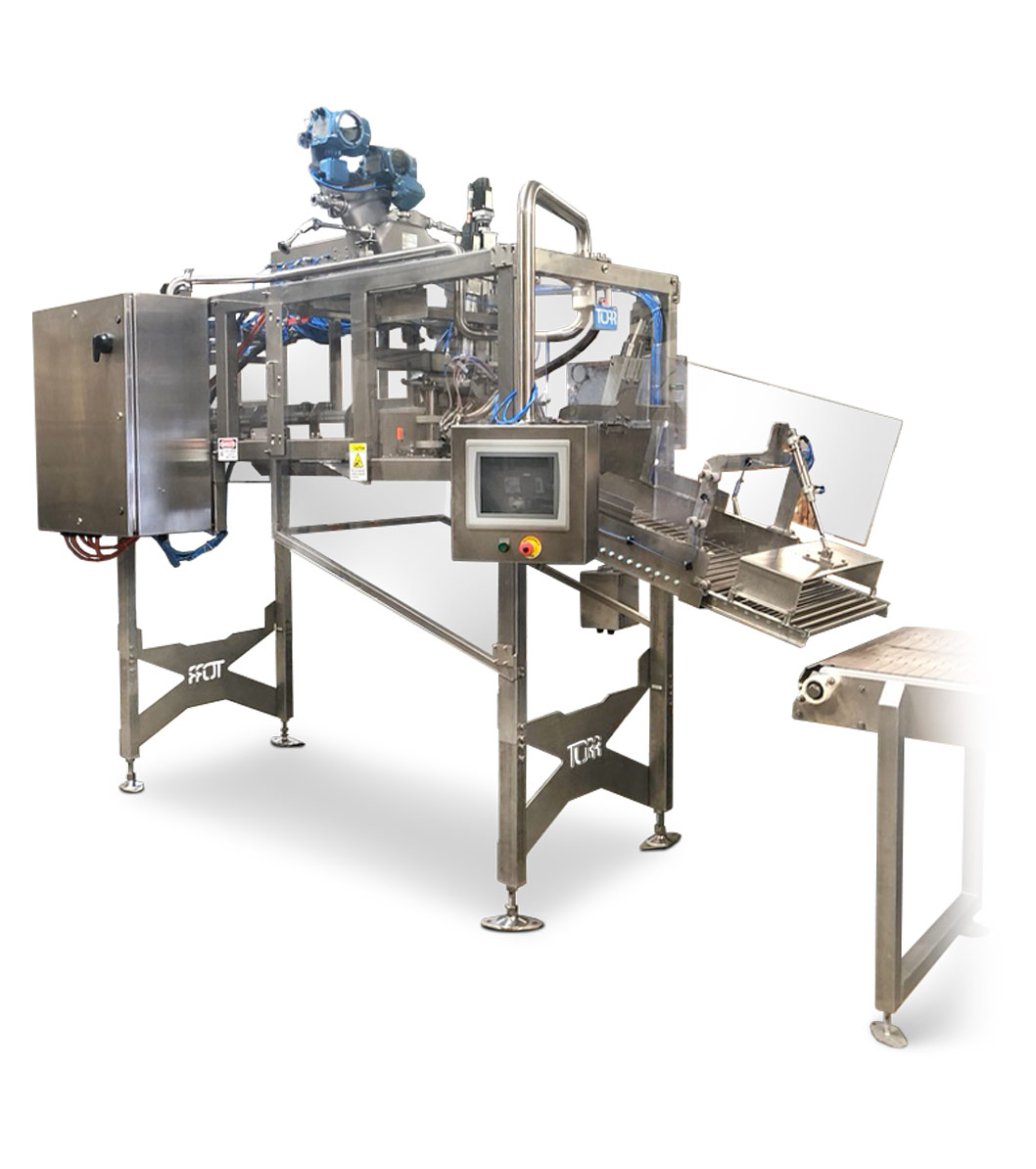

TORR SteriGLAND™ 160Aseptic Bag Filler
Fills Bag-in-Box (BIB)
TORR manufactures bulk, food service and retail aseptic bag fillers in Redding, California that fill SteriGLAND™ low acid aseptic “closed transfer filling” for guaranteed sterility.
- Fill Capacity: 1.5 to 20 - liters
- Production Output: Production Output: 5-6 x 10-litre bags per min depending on product and flow rate.
- Fill Accuracy:Typically +- 0.5% with Magnetic Flow Meter. Mass Flow Meter option available.
- Standards: Product-contact surfaces comply with USA 3A design standards, fully-compliant with European CE requirements.
- Utilities:
- Voltage: 480 VAC 50-60Hz @ 30 amps
- Air: 10 CFM @ 80 PSI
- Steam supply: Filtered, clean culinary grade @ 60 PSI
- Weight/Size: Approximately: 1,200 lbs
160 Spec Brochure pdfCall 530-247-6909 for pricing, info or inquiring about higher volume systems
Enclosed Fill Chamber
The fill head is completely enclosed within a sealed, removable chamber. The chamber is steam sterilized at 250F for 30 minutes prior to production. In production the bag spout and cap are raised into the sterilized fill chamber upon each fill cycle.
Stand Up Pouch Infeed
The 170 features an optional infeed track that allows aseptic filling of 0.75 to 3.0 liter stand up pouches with face mounted dispense taps as well as Bag in Box bags from 1.5 to 20 liters.
Touch Screen Panel View
Controls fill weights, adjust fill sequence and troubleshoot from the touch screen control panel.
