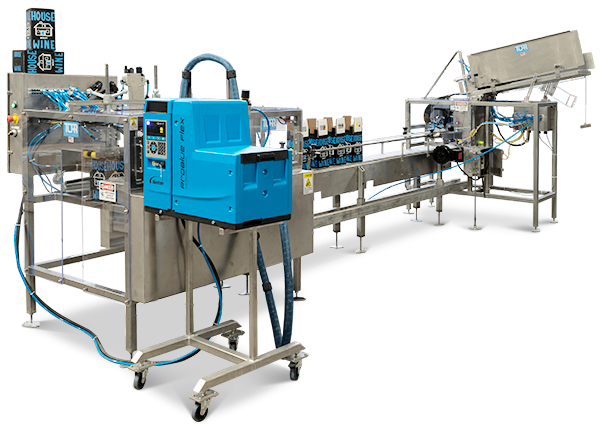

Box erection forming and sealing for the food packaging process

Box Erecting and Top Flap Sealers

TORR Box Equipment is designed & built in Redding, California for 1.5-to-10-liter boxes specifically for BIB bag packing. TORR found that most box equipment was either designed for light weight cartons or heavy weight double wall boxes. TORR equipment is compact and easy to adjust and designed for E and B flute corrugated.

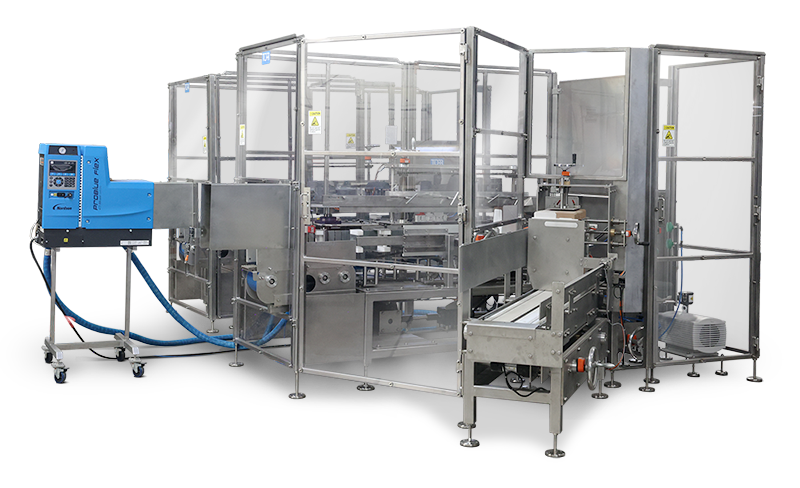

Box forming and erecting applications

TORR Box Equipment Features

  • Intermittent motion machines to support medium production lines (up to 18 BPM)
  • Continuous motion machine for high output production lines (up to 36 BPM)
  • Models for auto bottom flap and top and bottom glued box formats
  • Stainless Steel wash down construction
  • CAT-3 Safety Circuits meet all USA and Canadian safety standards
  • Allen-Bradley ControlLogix PLC and PanelView HMI
  • Nordson Blue 7 hot melt gluer. Other brands on request
  • Carton sizes for BIB packs from 1.5L to 10L. (up to 10 x 5 x15 inch ID full overlap flaps)
  • User-friendly box size changeover

TORRform™ Vertical Box Erectors

bag in box filler

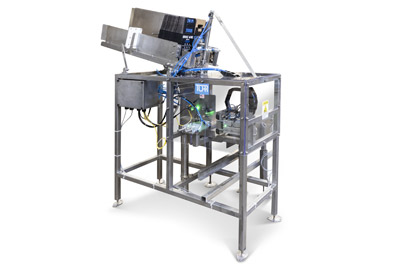

201GB Vertical Box Erector

TORRform™ Box Erecting Systems

The 201GB forms full-over-lap (FOL) type corrugated boxes reliably and squarely at speeds of up to 18 cartons per minute. Designed to handle BIB full overlap flap pack sizes from 1.5L up to 10L.Learn More

201AB Vertical Box Erector

TORRform™ Box Erecting Systems

The 201AB forms full-over-lap (FOL) type corrugated boxes with an ‘auto-locking’ bottom instead of glued bottom flaps. Bottom flap is locked with an air actuated plunger. Learn More

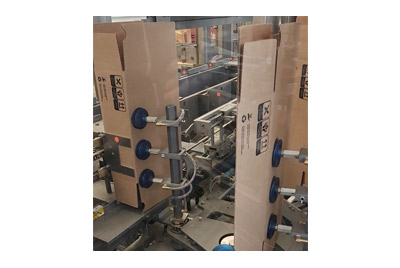

601Vertical Box Erector

TORRform™ Box Erecting Systems

The 601 forms full-over-lap (FOL) type corrugated boxes reliably and squarely at speeds of up to 36 cartons per minute. Designed to handle BIB full overlap flap pack sizes from 1.5L up to 10L. Learn More

TORRClose™ Vertical Box Sealers

bag in box filler

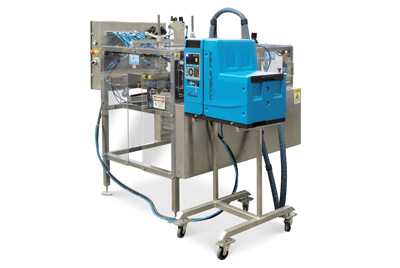

203 Vertical Box Top Flap Sealer

TORR semi automatic wine filling options

The 203 seals filled cartons received at random from the automatic bag into box loader at the TORR filler. Ideal for single filler installations. Learn More

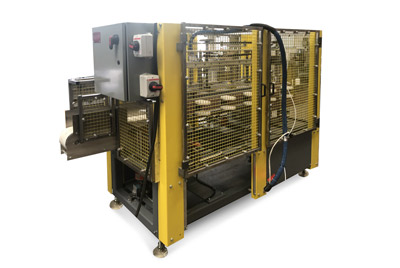

603 Vertical Box Top Flap Sealer

TORR semi auto filling options

The 603 closes full-over-lap (FOL) type corrugated boxes reliably and squarely at speeds of up to 36 cartons per minute. Designed to handle BIB FOL flap pack sizes from 1.5L up to 10L. Learn More

Please Call 1-530-247-6909 for Pricing & Additional Info
PATENTS TORR HOLDS MULTIPLE PATENTS, AWARDED AND PENDING
