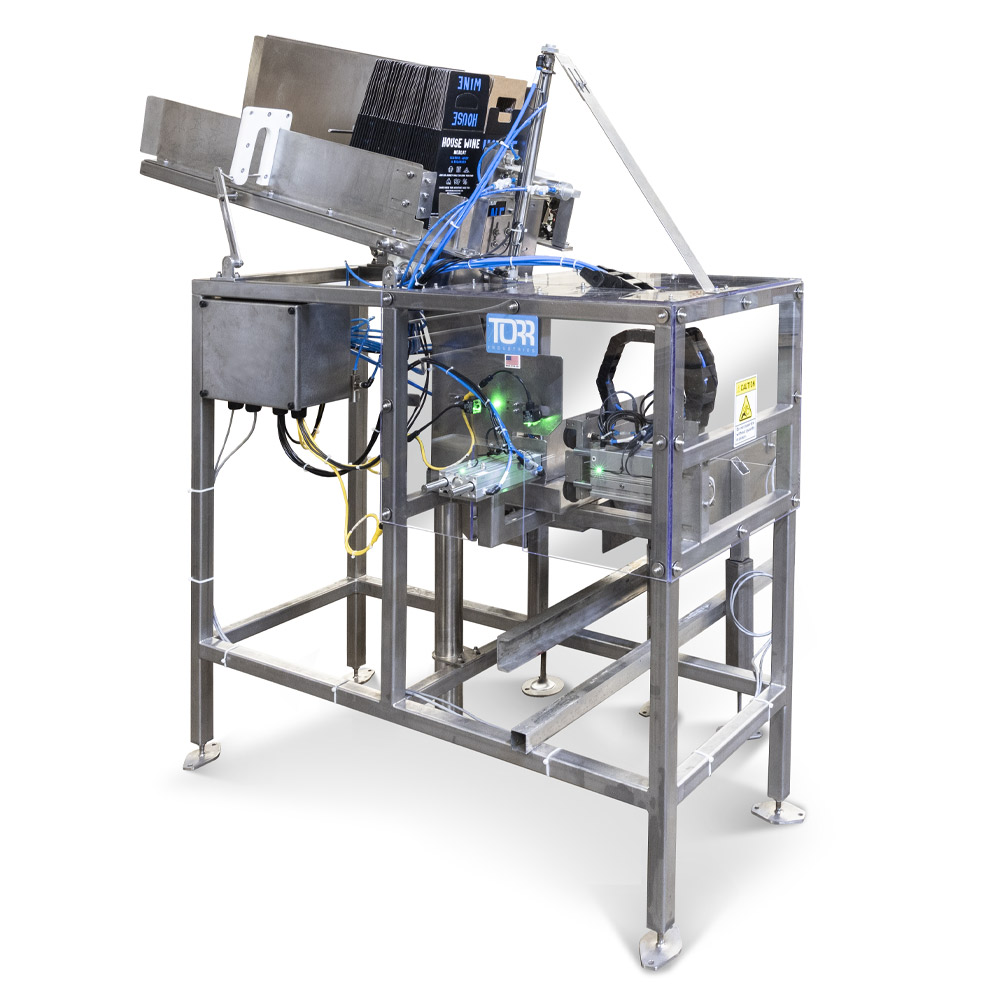

TORRform™ 201AB Vertical Box ErectorAutomatic Intermittent Motion Box Former for Auto-Lock Cartons

The 201AB forms full-over-lap (FOL) type corrugated boxes with an ‘auto-locking’ bottom instead of glued bottom flaps. Bottom flap is locked with an air actuated plunger. Support a single automatic filler at speeds up to 18 cartons per minute.

• Heavy duty welded stainless steel tubular frame.
• Washdown capable.
• Leveling screw feet, adjustable +/- 2-inches.
• Voltage: 220 VAC, single phase. Optional transformer for 440 volts.
• 24VDC power supply for control circuits.
• Allen-Bradley PLC.
• NEMA 12 electrical enclosure.
• Electrical interlocks on all hinged safety guards to USA & Canadian safety standards.
• Festo pneumatic components.
• Requires 15 cfm at 90 psi air supply, clean and dry.
• Venturi vacuum generator
• 72” powered carton magazine.
• No carton-no load feature.
• Nordson PB7 (2 hoses, 2 heads) shared with erector if ordered together.
