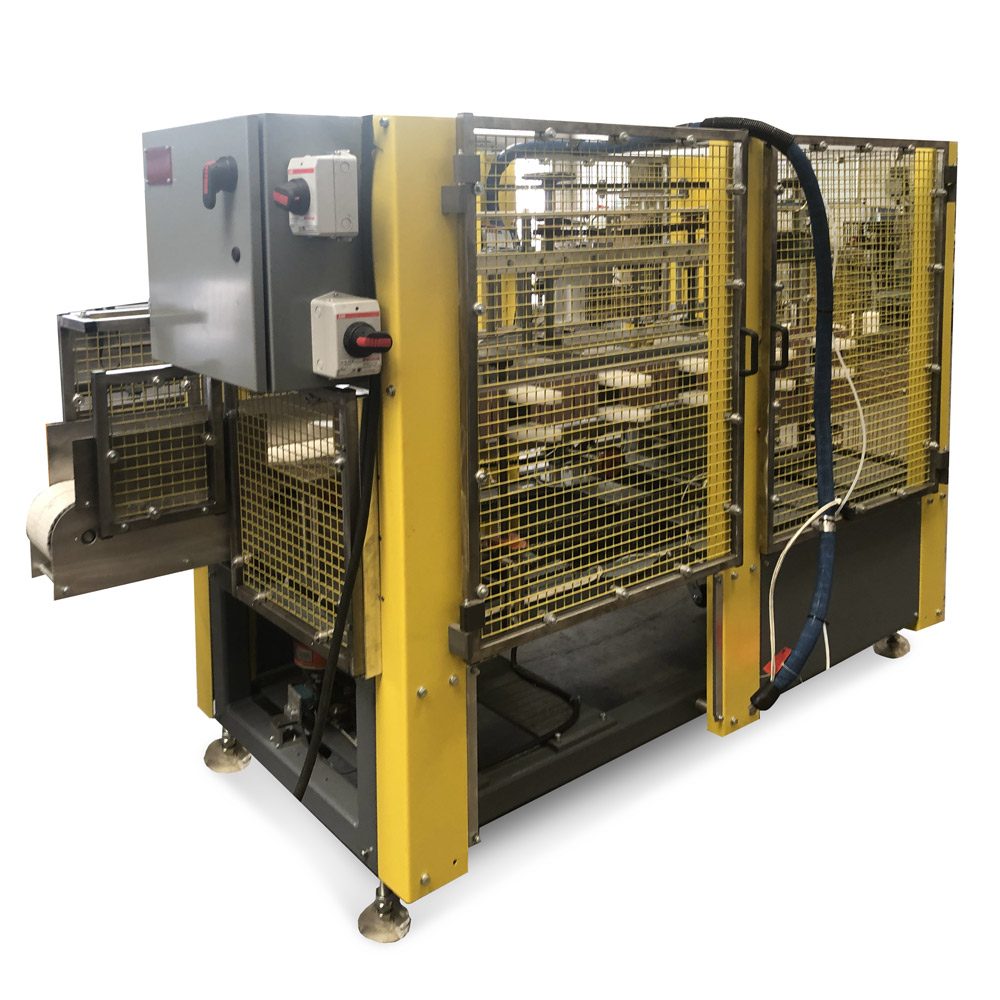

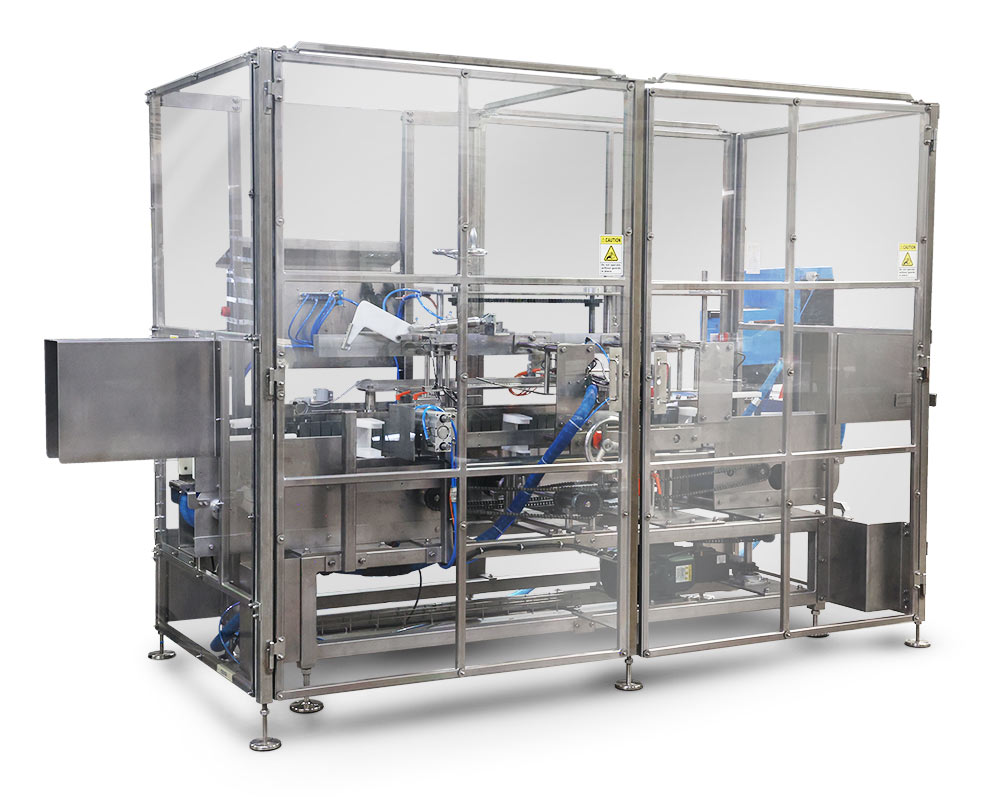

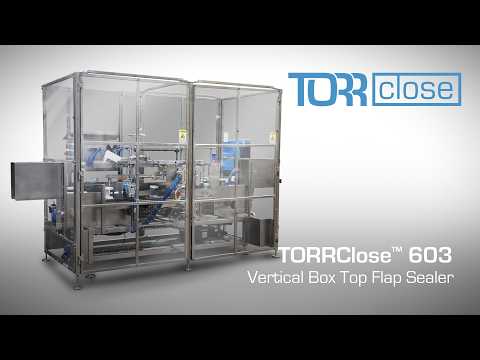

TORRclose™ 603 Vertical Box Top Flap SealerHigh Output Continuous Motion Automatic Top Flap Hot Melt Glue Sealer

The 603 closes full-over-lap (FOL) type corrugated boxes reliably and squarely at speeds of up to 36 cartons per minute. Designed to handle BIB FOL flap pack sizes from 1.5L up to 10L.

The erected boxes with bag inserted are moved by powered conveyor to the infeed. A side pusher transfers the box to a continuous motion side mount belt conveyor that moves the box through flap folders to a gluing station to close the top flaps of the box and discharge it onto an exit powered conveyor.

• Heavy duty welded stainless steel tubular frame.
• Washdown capable.
• Leveling screw feet, adjustable +/- 2-inches.
• 1.5 HP drive motor. AC inverter vari-speed.
• Line shaft drive system using enclosed and lubricated gearboxes.
• Jam/overload protection through a mechanical ball detent clutch with an electrical interface to the drive motor system.
• # 60 conveying chains with 12-inch center distance between cartons.
• Voltage: 220 VAC, single phase. Optional transformer for 440 volts.
• 24VDC power supply for control circuits.
• Allen-Bradley PLC.
• NEMA 12 electrical enclosure.
• Electrical interlocks on all hinged safety guards to USA & Canadian safety standards.
• Festo pneumatic components.
• Requires 10 cfm at 90 psi air supply, clean and dry.
• Venturi vacuum generator
• No carton-no load feature.
