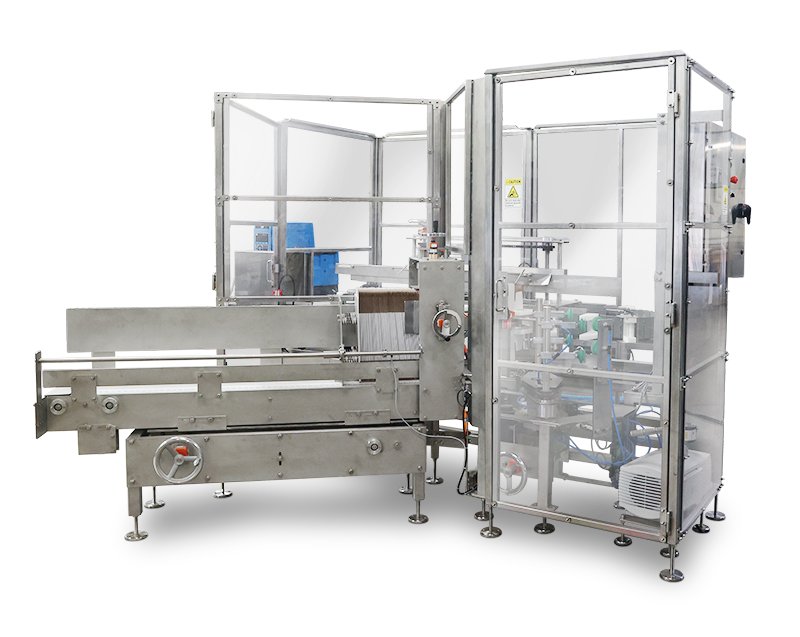

TORRform™ 601 Vertical Box ErectorHigh Output Automatic Box Former and Bottom Flap Hot Melt Glue Sealer Continuous Motion

The 601 forms full-over-lap (FOL) type corrugated boxes reliably and squarely at speeds of up to 36 cartons per minute. Designed to handle BIB full overlap flap pack sizes from 1.5L up to 10L.

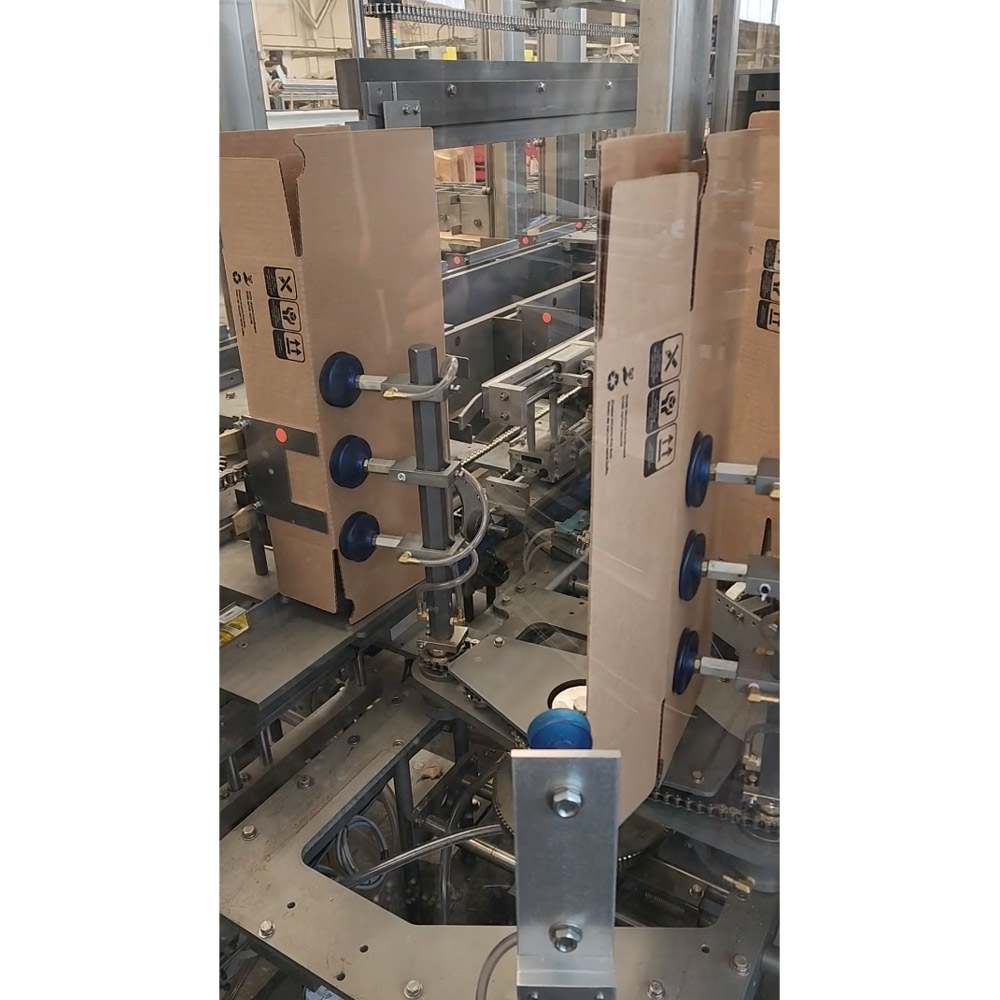

The vertically erected boxes are moved by a continuous motion side mount belt conveyor through flap folders to a gluing station to close the bottom flaps of the box and discharge it onto a powered conveyor to transfer the box to an automatic bag into box loader at the TORR filler.

The TORRform™ 601 is designed to integrate with two TORRfiller™ automatic bag fillers and bag into box loading systems at speeds up to 36 cartons per minute.

• Heavy duty welded stainless steel tubular frame.
• Washdown capable.
• Leveling screw feet, adjustable +/- 2-inches.
• 1.5 HP drive motor. AC inverter vari-speed
• Line shaft drive system using enclosed and lubricated gearboxes
• Jam/overload protection through a mechanical ball detent clutch with an electrical interface to the drive motor system.
• # 60 conveying chains with 12-inch center distance between cartons.
• Rotary carton feed. 2 head with prebreak.
• Voltage: 220 VAC, single phase. Optional transformer for 440 volts.
• 24VDC power supply for control circuits.
• Allen-Bradley PLC.
• NEMA 12 electrical enclosure.
• Electrical interlocks on all hinged safety guards to USA & Canadian safety standards.
• Festo pneumatic components.
• Requires 15 cfm at 90 psi air supply, clean and dry.
• Venturi vacuum generator
• 72” powered carton magazine.
• No carton-no load feature.
• Nordson PB7 (2 hoses, 2 heads) shared with erector if ordered together.
